WTVA SERIES TEMPERATURE COMPENSATION ATTENUATOR（2～7dB）

Product Description

General-purpose temperature compensating attenuators are mainly used in RF and microwave circuits for amplifier gain compensation, gain stabilization, and level control. They feature temperature-variable attenuation, rugged thick-film construction, and an applicable frequency range from DC to 6 GHz.

Both negative and positive temperature coefficient versions are available, with attenuation values from 1 to 10 dB in 1 dB steps. The bondable gold terminations are suitable for gold-wire and gold-ribbon bonding.

Attenuation :
2～7dB
TCA Code :
-0.003～-0.009
Mounting Style :
WB2
Rated Power :
0.2W
Frequency Range :
DC～20GHz

JETZT ANFRAGEN

Produktdetails

I. SPECIFICATIONS

Impedance:50mΩ
Frequency Range:DC to 6GHz
VSWR@1GHz@25℃: 1.30max
Power Rating:2W
Operating Temperature:-55℃ to +150℃
Attenuation Tolerance:±0.5dB
Temperature Coefficient of Attenuation(TCA):From -0.003 to-0.010dB/dB/℃

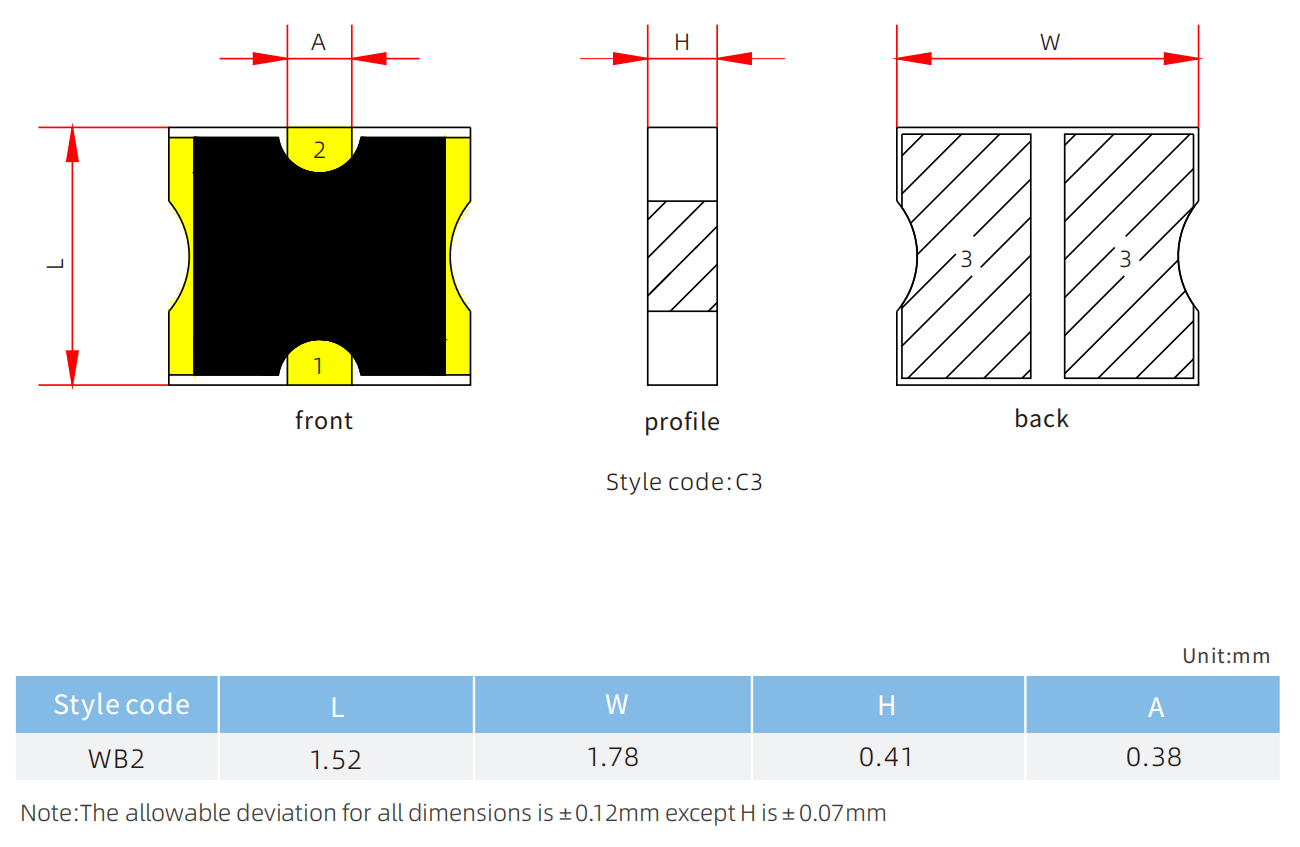

II. MOUNTING STYLE AND DIMENSIONS

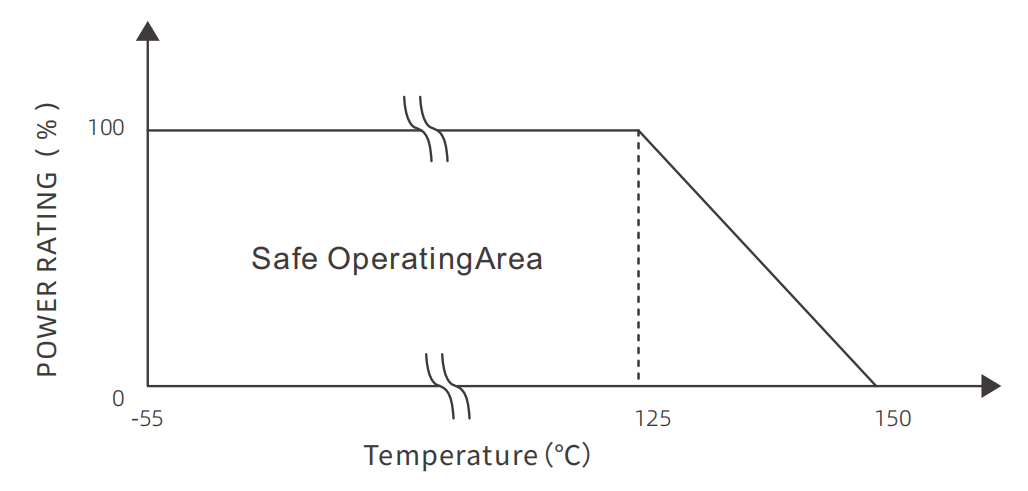

III. POWER RATING AND DERATING

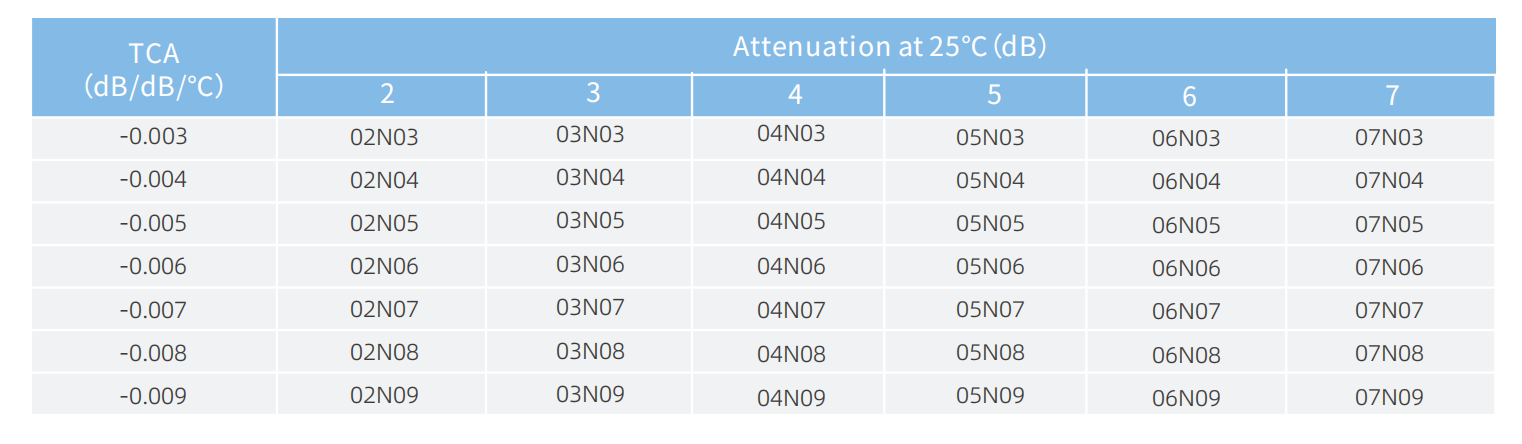

Ⅳ. AVAILABLE ATTENUATION AND TCA RANGE

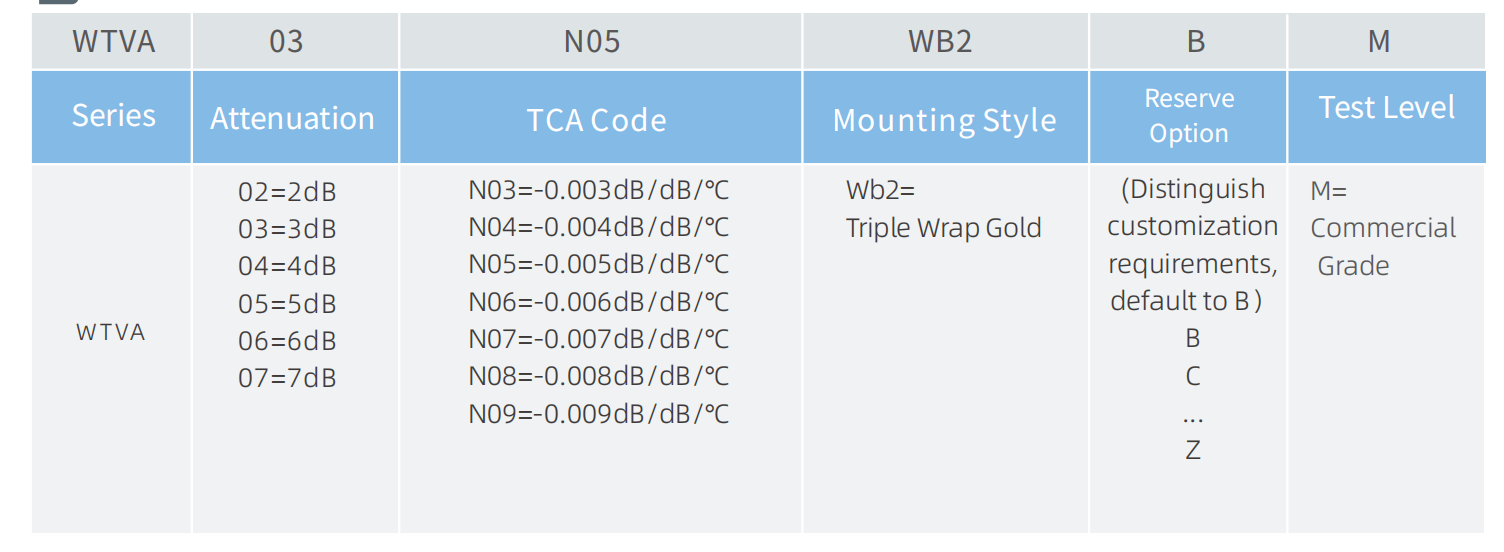

Ⅴ.PART NUMBERING CODE
