NTVA SERIES TEMPERATURE COMPENSATION ATTENUATOR

Product Description

Mainly used in microwave integrated circuits (MICs), base stations, and RF power amplifier modules for gain stabilization, signal linearity improvement, and temperature-induced drift compensation.

General specification is GJB2438A-2002 (or applicable military standard for passive components), detail specification is ZZR-Q/TJKJ20008-2023, NTVA series general-purpose temperature compensation attenuator with negative attenuation temperature coefficient, and standard number is JLCH61020095, featuring excellent microwave performance with applicable frequency of DC to 18 GHz (customizable up to 40 GHz), and surface gold electrodes suitable for epoxy or solder attachment, as well as gold-wire and gold-ribbon bonding for hybrid circuit integration.

Toleranz :
±0.5dB

JETZT ANFRAGEN

Produktdetails

I. SPECIFICATIONS

Impedance:50Ω
Frequency Range:DC to 20GHz
VSWR@1GHz@25℃: 1.30max
Power Rating: 0.2W
Operating Temperature:-55℃ to +150℃
Attenuation Tolerance:±0.5dB
Temperature Coefficient of Attenuation(TCA):From -0.003 to-0.009dB/dB/℃

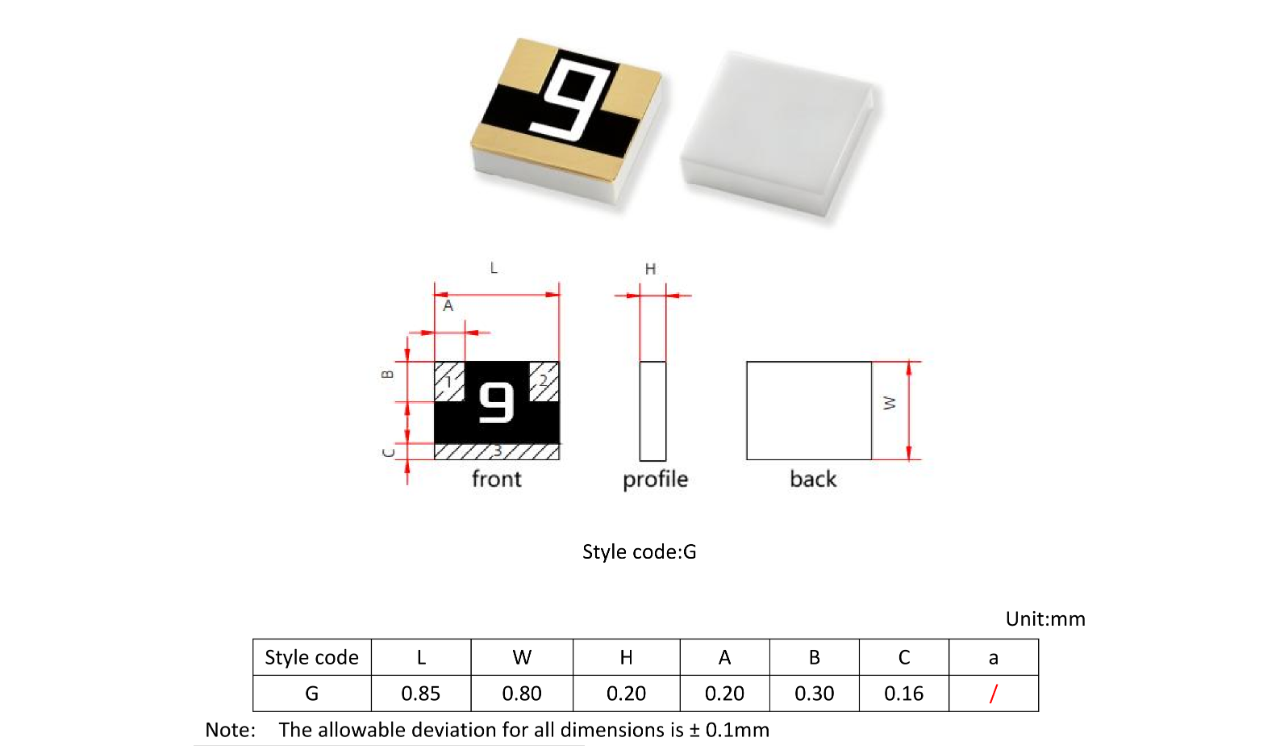

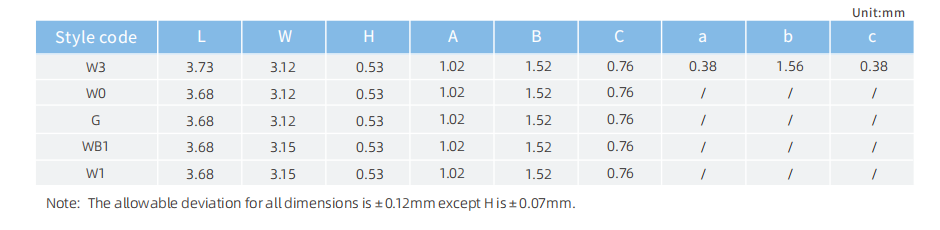

II. MOUNTING STYLE AND DIMENSIONS

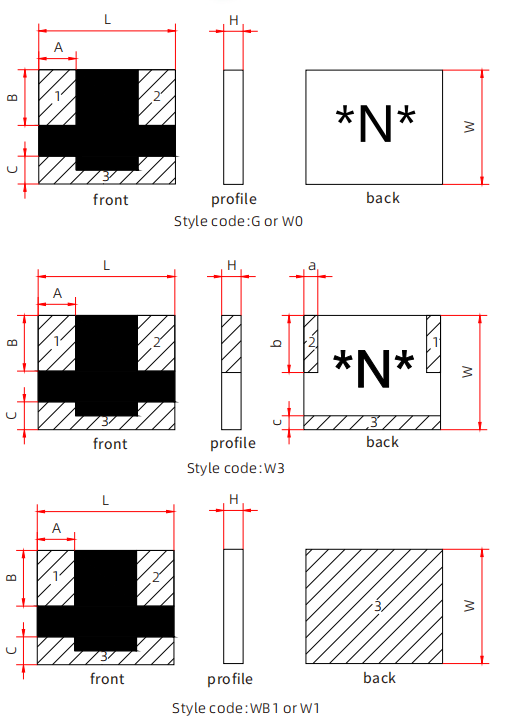

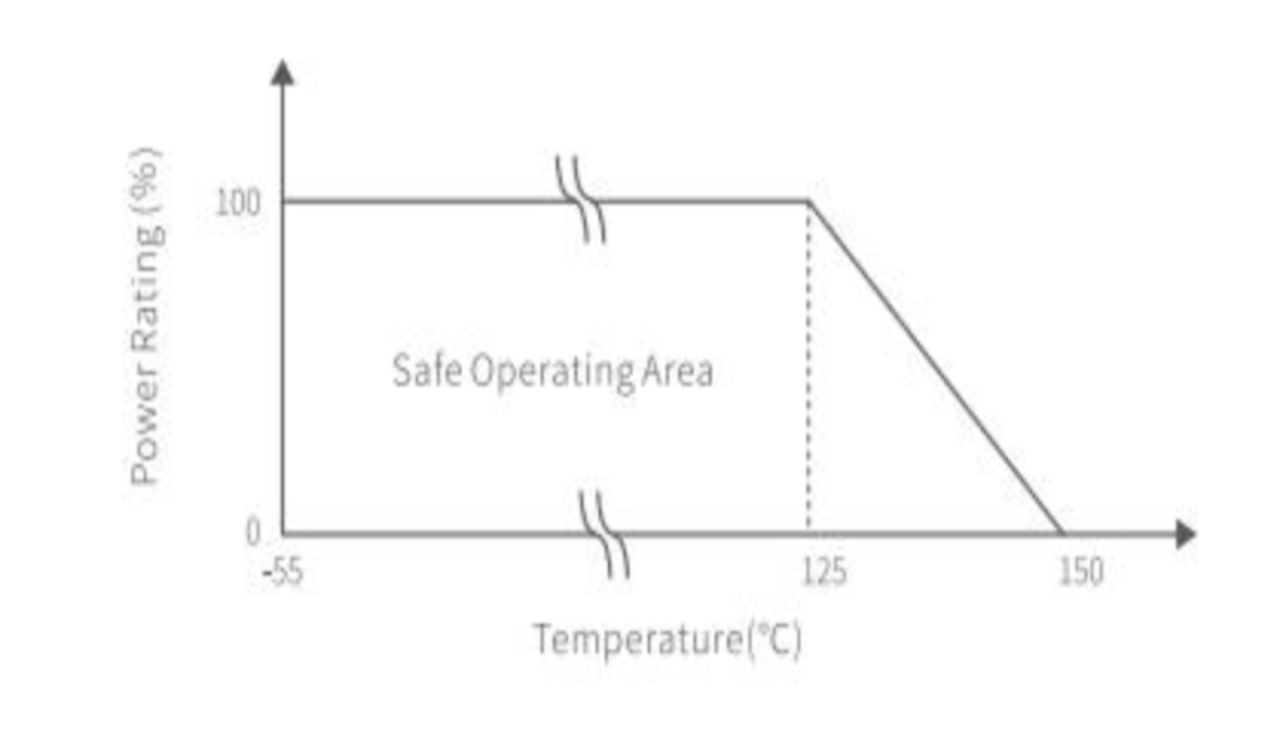

III. POWER RATING AND DERATING

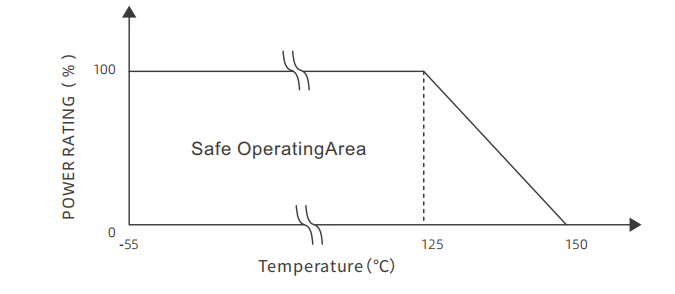

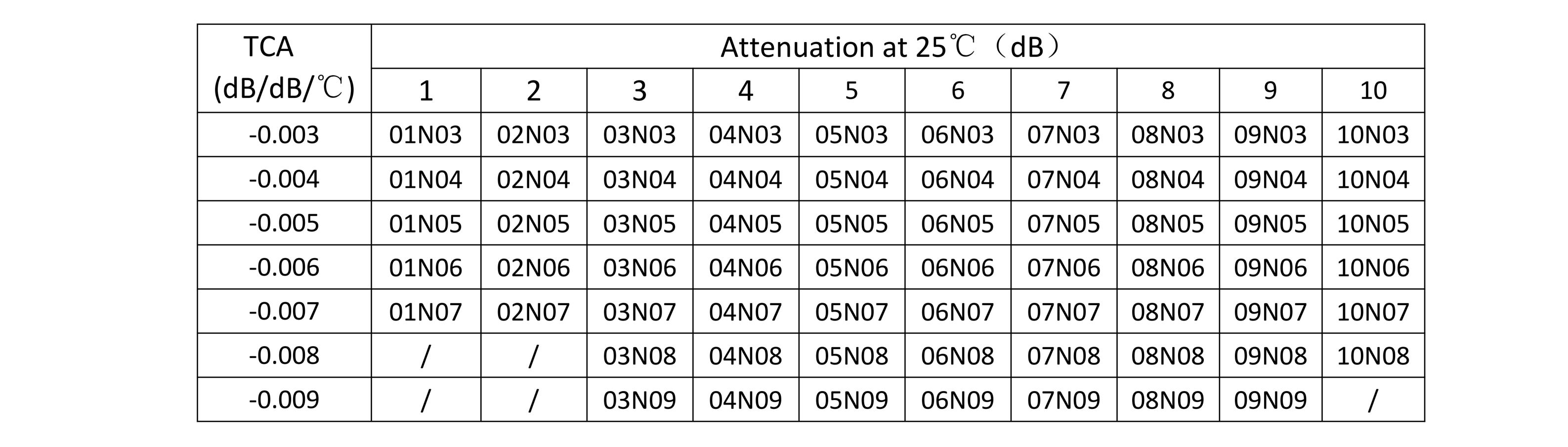

Ⅳ. AVAILABLE ATTENUATION AND TCA RANGE

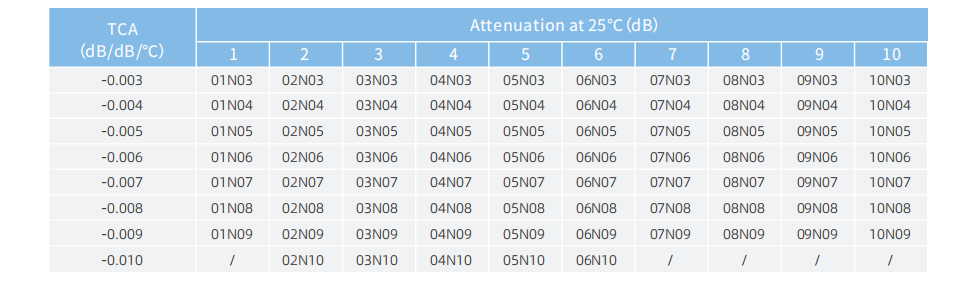

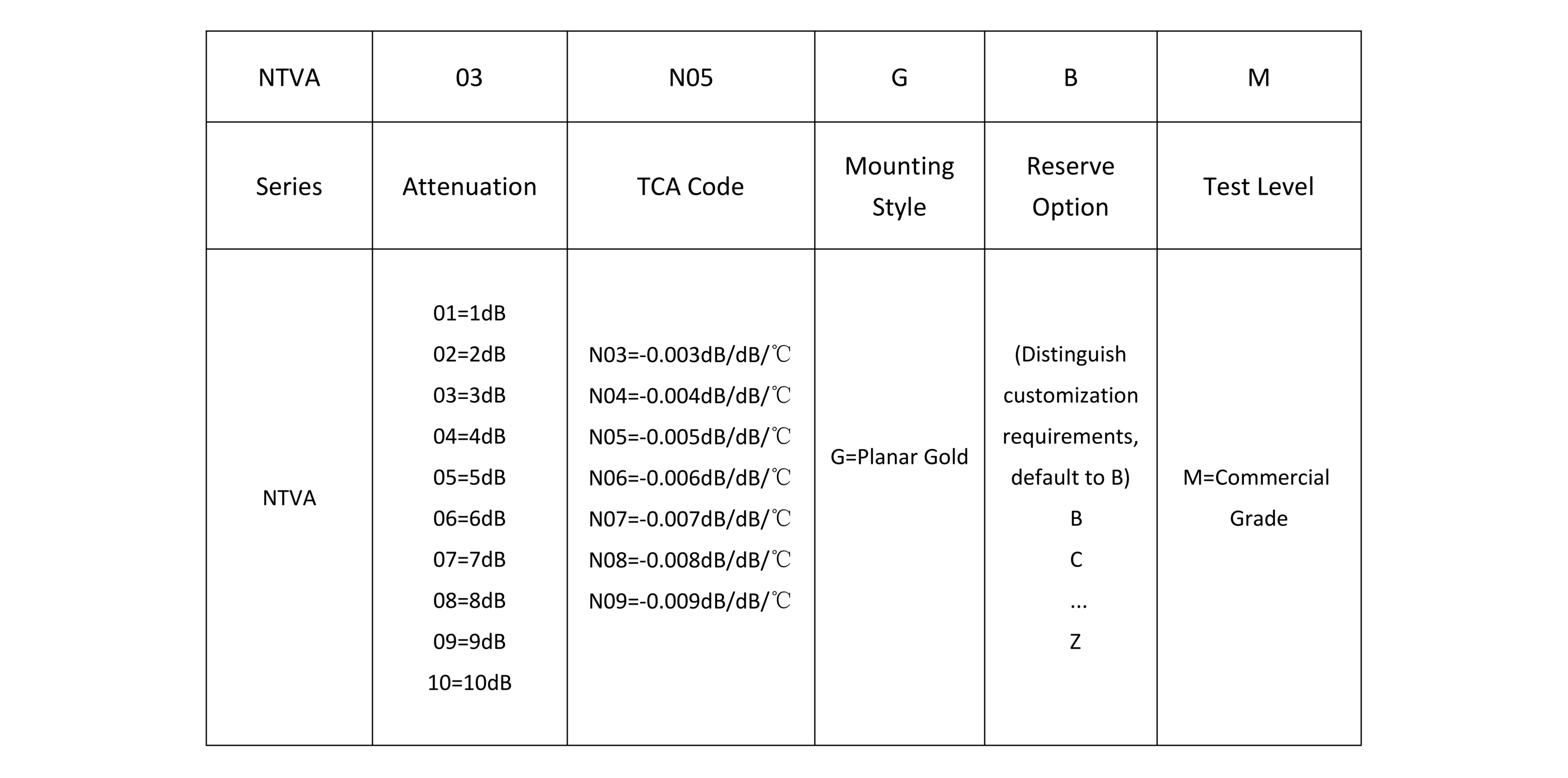

Ⅴ.PART NUMBERING CODE

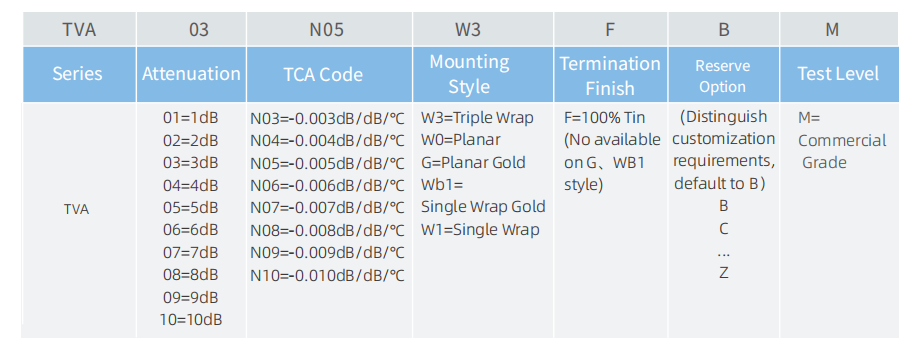

HEISSE TAGS : Temperature Compensation Attenuator RF Temperature Compensating Attenuator Microwave Attenuator with Temperature Compensation Gain Slope Equalizer / Temperature Variable Attenuator NTC Attenuator / Thermistor-based Attenuator Surface Mount Temperature Compensating Attenuator Power Amplifier Temperature Compensation 5G Base Station Attenuator / Telecom Attenuator DC to 18 GHz Attenuator / Broadband Attenuator Gold Electrode Attenuator for Hybrid MIC
